Aim MyChron6 Kart Lap Timer & Data Logger
The Aim MyChron 6 and 6 2T are advanced kart data loggers, specifically designed for competitive kart racers looking to analyse and enhance their performance. They feature GPS technology for precise lap timing, configurable displays for real time data logging and integrates seamlessly with Race Studio 3 software for data management. The 2T model also supports two temperature sensors, allowing karters to monitor and optimise multiple engine parameters.
Features :
Dedicated pages
and excellent screen clarity

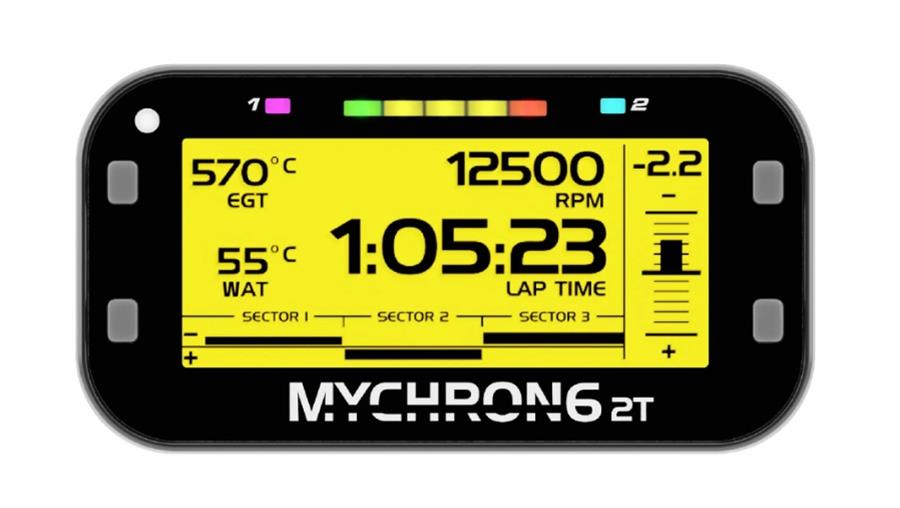

MyChron6 features a wide 320x136 pixels graphical display to have all the data under control.
With the new dedicated pages layout, split times, overall delta time and heart rate will be easily and promptly monitored.
The incorporated light sensor makes brightness and contrast ideal in all light conditions.
MyChron6 display will be always readable and clear even in the most intense phases of the competition.
The screen features a new page layout with delta bargraph per sector time and delta time from reference lap.
The screen can be backlited in one of the eight available colors
Bluetooth connectivity
Experience seamless connectivity with the advanced Bluetooth module of MyChron6.
If you wish to measure your heart rate while racing, simply connect via Bluetooth the heart rate monitor to your MyChron6 and look the data on-screen or download them after the race.
Compatible with the most common heart rate monitor on the market.
Wi-Fi
Easy wireless data download via Wi-Fi:
no need for data keys or PC connections.
Update your device over Wi-Fi to ensure
it always has the latest features
and improvements.
Second CAN
The second CAN is dedicated to
connect external modules requiring
CAN communication protocols.
Dedicated storage
The USB-C connector, in addition to allowing you to charge your logger, permits to store all your data in the optional massive 16 GB dedicated memory module.
6 axis inertial platform
MyChron6 is equipped with a powerful
6-axis inertial platform (IMU), measuring
accelerations and angular velocities at 100 Hz,
which allows for highly accurate steering
wheel position tracking.
Improved GPS
MyChron6 features an internal, high precision, 25 Hz four navigation satellite systems (GPS, GLONASS, BeiDou, Galileo) receiver and an internal database including information about the track: just switched ON, it automatically recognizes the track and gets the information about the Starting Line Position and the Time Zone. The precision of the calculated Lap Times is 1/100 of second.
Track database
MyChron6 can recognize the finish line coordinates of thousands of tracks all over the world.
Opening RaceStudio 3 you will see the huge list of tracks included in the AiM database, sorted by nation, circuit and surface type: you will be able to create your own collection, adding/removing tracks.
Should your home track be missing, after one lap its coordinates will be automatically detected by MyChron6 GPS and if you wish - once downloaded onto your PC - will be sent to AiM software Dept. to be included in the database.
Up to 20 working hours
Thanks to the new large high-performance battery and low-consumption electronics with up to 20 hours of autonomy, MyChron6 will be your reliable companion on the track without the need for recharging.
Data recall
At the end of the test you can recall sampled data.
Data recall is available in two types of race, road
and oval (oval type is only available in US version).
You'll have all the information of the tests taken,
with different pages and dedicated views, on best
lap times, best splits, best rolling lap time and
the best theoretical lap, RPM graph and
histograms.
